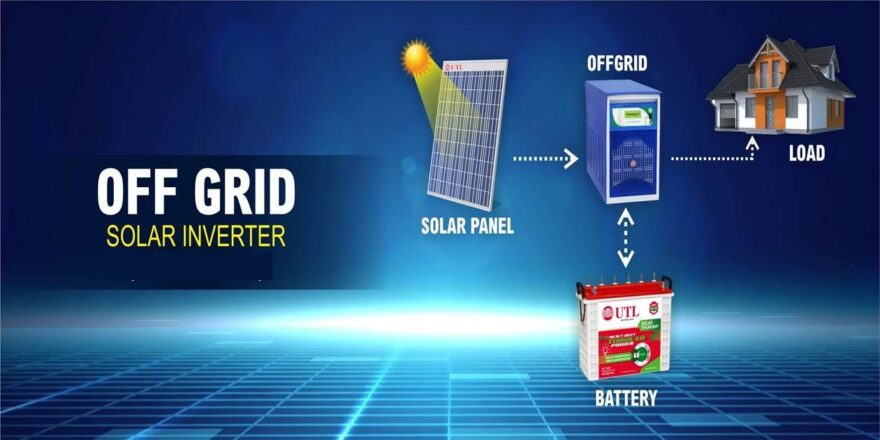

Off-grid inverters serve as the bridge between stored DC power and usable AC electricity in independent power systems.
They enable energy captured by solar panels or generators to power household appliances without reliance on the grid.
Properly sizing an inverter ensures safe, efficient, and reliable power delivery. An undersized system can lead to overloads or system failure, while excessive oversizing may drive up costs unnecessarily.
Precision in planning makes all the difference in achieving energy autonomy.
Estimating Your Energy Needs
Designing an off-grid power system begins with accurate estimation of energy consumption. Every appliance, no matter how small, contributes to the total load.
Before selecting an inverter, a detailed breakdown of daily power usage lays the foundation for everything that follows.
Without this step, even the best equipment can fall short of expectations.
Inventory of Appliances and Devices
Start with a comprehensive list of all electrical items used daily. Include lights, ceiling fans, refrigerators, televisions, routers, washing machines, microwaves, computers, and any power tools or medical devices.
Record both the continuous running wattage and the surge wattage, those short spikes of power many devices require at startup.
For example:
- Refrigerator: 150W continuous, 600W surge
- LED light: 10W
- Washing machine: 500W continuous, 1000W surge
- Laptop: 60W
Surge ratings are just as important as continuous draw when choosing an inverter that can handle short bursts without tripping.
Calculating Total Power Demand
Sum the wattage of all devices expected to operate simultaneously. Peak load typically occurs during meal preparation, laundry, or when heating and cooling systems run together.
For instance, if multiple high-draw devices run at the same time—microwave (1000W), refrigerator (150W), and washing machine (500W)—total demand reaches 1650W continuous, not accounting for surge.
Understanding usage patterns over a day helps design a system that doesn’t fall short when demand spikes.
Converting Watts to VA
Inverters are often rated in Volt-Amps (VA), not Watts. To convert total wattage to VA:
VA = Watts / Efficiency
If your inverter operates at 80% efficiency:
VA = 1650W / 0.8 = 2063 VA
Efficiency accounts for conversion losses when transforming DC into AC. Choosing an inverter based solely on wattage without accounting for this may result in an underperforming system.

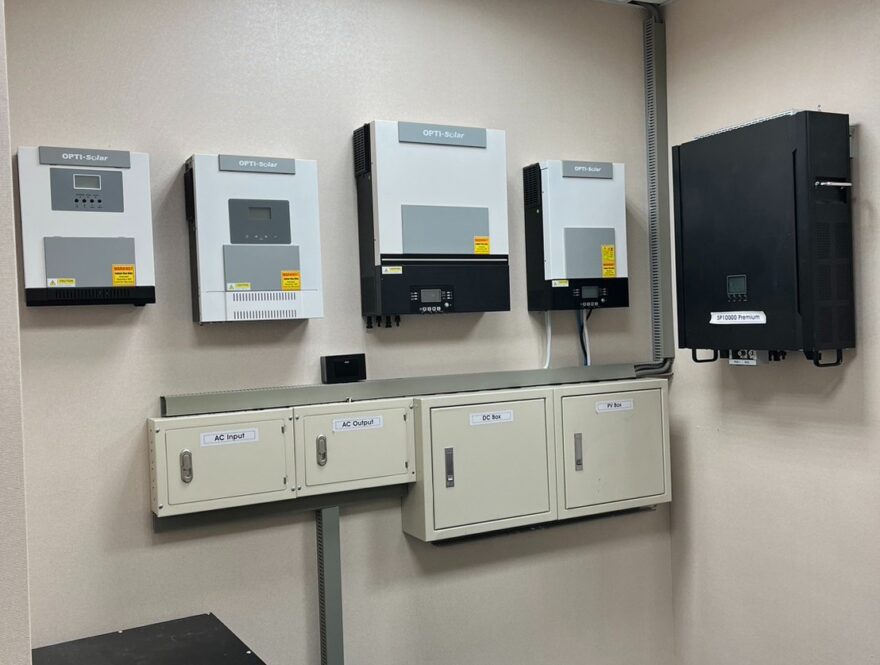

Charger Output for Battery-Based Systems
Many off-grid inverters include built-in chargers designed to restore battery banks using backup sources such as generators or occasional grid power.
These integrated chargers are essential in maintaining energy availability when solar or wind input drops due to poor weather or extended use.
Charger output is measured in amps and determines how fast the inverter can replenish the battery bank. A low-output charger may struggle to recharge batteries before the next demand spike, leaving users vulnerable during high-load periods or prolonged overcast conditions.
A high-output charger, on the other hand, accelerates recharge cycles and improves system resilience.
For example, consider a 400Ah battery bank at 50% depth of discharge. A 30-amp charger may take over 7 hours to restore full charge, while a 60-amp charger cuts that time nearly in half.
Faster charging means fewer generator hours, which lowers fuel usage, reduces noise, and minimizes wear on engine components.
Higher charger output is particularly valuable in setups relying heavily on intermittent power sources or those where generator use is limited by fuel availability or noise restrictions. It also provides peace of mind during winter or storm seasons when solar harvest drops significantly.
Proper charger sizing should align with battery capacity, generator power, and recharge frequency.
Oversized chargers may waste energy or exceed safe charging rates, while undersized ones leave batteries undercharged, increasing the risk of long-term degradation.
Balancing these elements ensures that energy storage remains a reliable backbone of the entire off-grid system.
For those sourcing batteries to support their off-grid inverter systems, suppliers offer deep-cycle 12V gel batteries well-suited for solar and marine environments. Their lineup includes models ranging from 110Ah to 180Ah, which are compatible with small to medium off-grid power setups.
Selecting a reputable battery supplier ensures long-term performance and reliability, especially when paired with appropriately sized inverter chargers. If you don’t know where to start looking for one, check https://www.gtkmarinepower.com.
Matching Inverter Size to Power Requirements
No single inverter size fits every off-grid scenario. The size of a home, type of appliances, and expectations for usage play critical roles in selecting an appropriate model.
Choosing the right capacity prevents frustration, wasted energy, and expensive upgrades later on.
Inverter Output Ratings by Home Type
Inverter size must match household type and lifestyle. Suggested ranges include:
- Small cabin or tiny home: 1000–2000W
- Ideal for basic lighting, small refrigeration, and phone/laptop charging.
- Average family home: 3000–6000W
- Capable of running multiple appliances, entertainment systems, and kitchen devices.
- Large off-grid home: 8000W or more
- Supports full-sized kitchens, HVAC systems, and multiple high-wattage tools.
Adjustments should be made for seasonal demands or special requirements such as well pumps or medical equipment.
Oversizing for Reliability
Adding a 10–20% buffer above your peak power needs enhances reliability. An inverter rated at 5000W for a 4500W load prevents performance dips during surge periods.
This margin reduces strain, improves longevity, and avoids nuisance shutdowns. Oversizing also allows flexibility for future additions to the load profile.
Choosing the Right Voltage System
System voltage affects current, wire sizing, and overall efficiency. The most common voltage options for off-grid setups include:
12V systems
Common in RVs, boats, or small sheds. Easy to configure but inefficient for large loads due to high current draw and voltage drop.
24V systems
Suitable for medium loads. Offers improved efficiency and moderate cable thickness.
48V systems
Recommended for full-sized homes or installations with high energy demands. Lower current means thinner wires, less heat, and improved overall efficiency.
Voltage choice should align with system size, battery bank configuration, and intended usage patterns.

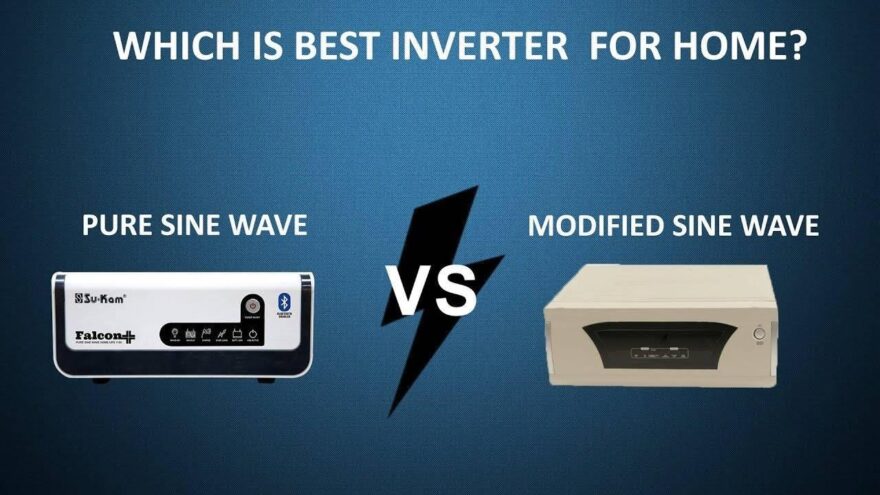

Pure Sine Wave vs. Modified Sine Wave Inverters
Voltage configuration influences efficiency, wire gauge, and system complexity. Lower voltages suit smaller setups but introduce greater current losses.
Higher voltage systems handle larger homes and higher demands more efficiently.
Voltage selection should reflect system size and intended power needs.
Pure Sine Wave Inverters
Delivers clean, stable AC power equivalent to what utilities provide. Essential for powering modern electronics, motors, medical devices, and high-efficiency appliances.
Advantages include:
- Smooth motor operation
- No buzzing or distortion in audio devices
- Reduced risk of damage to sensitive equipment
Modified Sine Wave Inverters
A cost-effective option for basic loads like power tools or resistive heating. However, they can introduce noise, cause overheating, and shorten appliance lifespan.
Limitations include:
- Not compatible with many modern electronics
- Can void warranties on certain appliances
- Inefficient for long-term home use
Pure sine wave models are generally the better choice for any residential or semi-residential setup.
Summary
Sizing an inverter for off-grid use begins with accurately assessing energy needs. Add up all loads, factor in peak usage, convert to VA using efficiency metrics, and select an inverter with a reliable power margin.
Voltage system selection affects efficiency and wiring. Pure sine wave inverters offer superior compatibility with modern electronics, and built-in chargers with high outputs increase system resilience.
For large-scale or complex installations, professional consultation ensures all variables, load type, surge requirements, charging needs, and safety, are addressed with precision.
